CARTESIAN ROBOTS

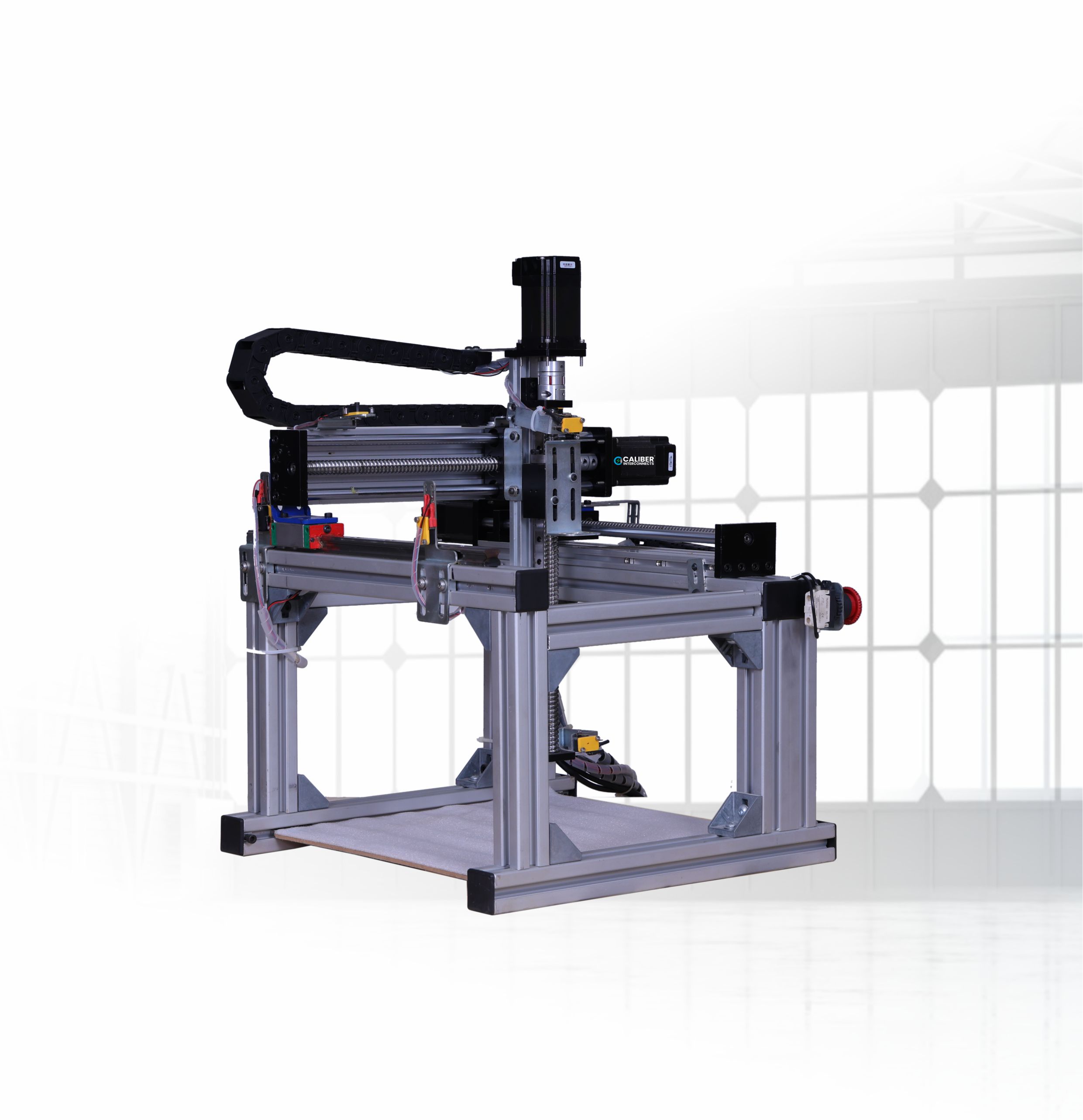

CARTESIAN ROBOTS – Gantry Automation Systems
The Cartesian Robot Series delivers precision-driven automation for manufacturing, testing, and inspection. Built on a multi-axis gantry platform, it provides ±0.1mm repeatability, making it ideal for applications that demand high accuracy.
With modular axis configurations, flexible end-effectors, and seamless integration with ICT/FCT, MES, ERP, and vision systems, these robots are perfect for 24×7 industrial automation.
Core Technologies Powering our Platform
Multi-Axis Linear Motion
Precision movement along X, Y, Z axes for accurate positioning
Smart Motion Control
Real-time coordination, velocity profiling and end-effector triggering
Flexible Tooling Support
Easily mountable tools for gripping, probing, inspection, or handling
Vision Integration
Camera-based alignment, inspection, sorting or part presence verification
Safety & Monitoring
Emergency stop, interlocks, fault diagnostics, remote access support
Connectivity
Ethernet, USB, Wi-Fi – ready for industrial systems and IoT integration
What sets Caliber apart in Cartesian Robotic Automation?
Full-Stack Engineering & Automation Expertise
- In-house design of motion systems, embedded control, mechanical enclosures and application software.
- Custom automation solutions for test, assembly, material handling, sorting and pick-and-place
- Precision-engineered for repeatability, robustness and safety
Industrial Integration & Smart Control
- Compatible with ICT/FCT systems, MES/ERP platforms, barcode/RFID systems and conveyors
- Remote diagnostics, motion analytics and predictive maintenance ready
- Scalable deployment across labs, factories and multi-line production environments
Configurable Platform for Diverse Applications
- Modular Cartesian (Gantry-style) robotic system tailored to specific workflows
- Supports a wide range of end-effectors including grippers, test probes, suction cups and more
- Seamless integration into existing production lines or test stations
Fast Deployment & Long-Term Flexibility
- Designed for easy setup, minimal maintenance, and rapid reconfiguration
- Robust mechanical construction suitable for 24x7 operation
- Flexible software allows motion programming, test sequencing, or part handling logic
Ideal Applications
PCB Test Automation (ICT/FCT)
Pick and Place for Assembly or Packing
Conveyor Line Material Handling
Vision-Assisted Part Inspection or Sorting
End-of-Line Functional Testing
Specifications
|
Parameter
|
Value
|
|---|---|
|
Platform Type
|
Cartesian Robot (Gantry Architecture)
|
|
Motion Axes
|
3 or more, configurable
|
|
Payload Capacity
|
Up to 5 Kg (extendable based on application)
|
|
Repeatability
|
± 0.1 mm
|
|
Cycle Time
|
5–15 seconds (use case dependent)
|
|
Controller Options
|
Embedded Control, PLC, or Industrial PC
|
|
Power Supply
|
230V AC / 50 Hz; Optional Pneumatics
|
|
Integration Support
|
MES, ERP, ICT/FCT, Vision Systems
|
|
Optional Features
|
Camera, Barcode Reader, Label Applicator
|
FAQ
Yes — axes, stroke lengths, end-effectors, and payloads are fully customizable.
